Fuel Sending Units in Classic Cars: Understanding, Testing, and Repairing an Overlooked Essential

In the golden era of motoring between the 1900s and 1970s, automotive engineering underwent a seismic shift. From mechanical starters to electric gauges, innovations redefined the driving experience. One often-overlooked but critical component is the fuel sending unit. These small, unassuming devices are the bridge between your fuel tank and your dashboard, and when they fail, you're left guessing how much fuel you have. For restorers and owners of classic cars and trucks, understanding how these units work—and how to repair or replace them—is essential.

What Is a Fuel Sending Unit?

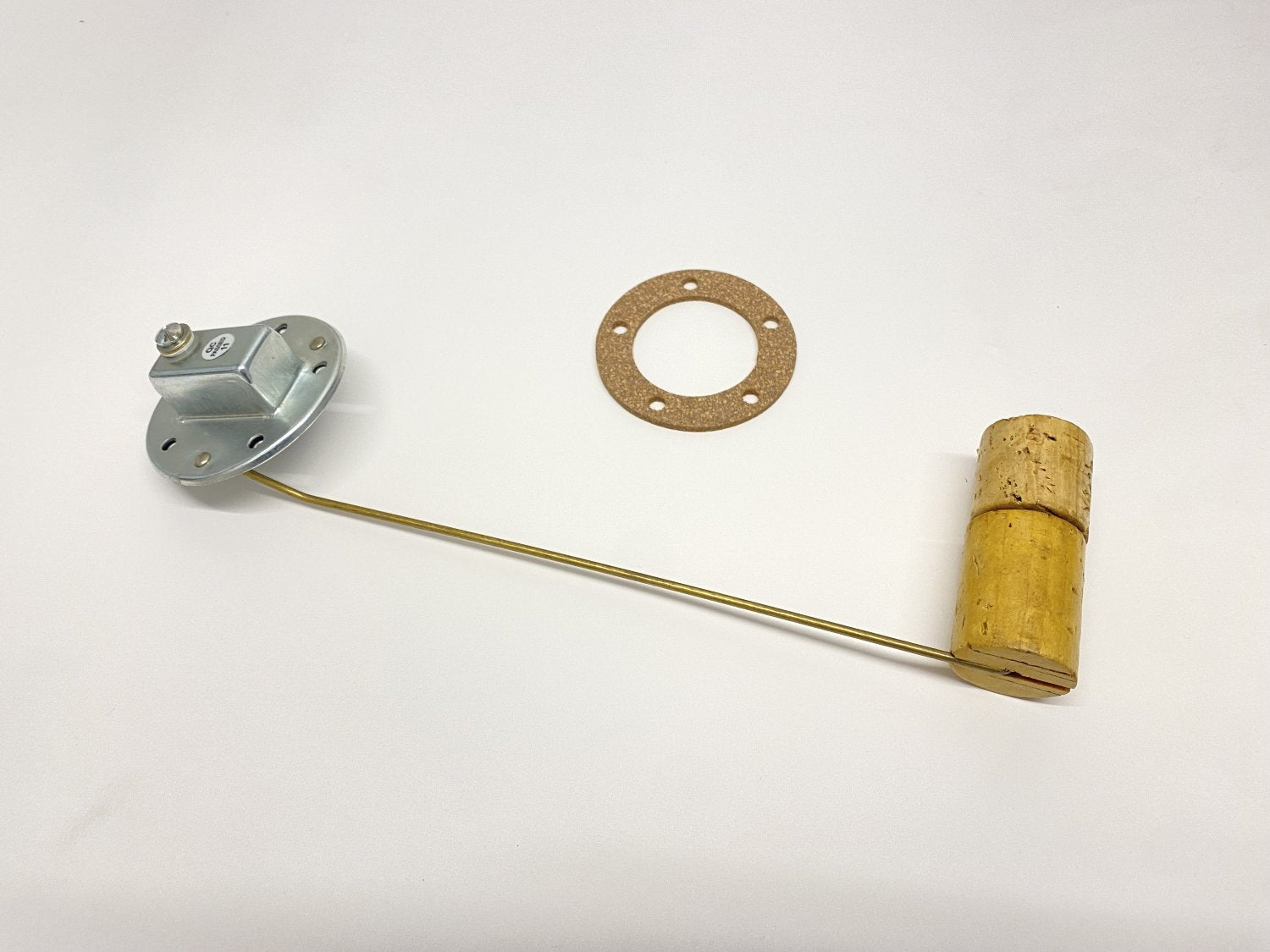

A fuel sending unit is a variable resistor connected to a float inside the fuel tank. As the float rises or falls with the fuel level, it changes the resistance, sending a signal to the fuel gauge. This signal must be accurate to ensure proper fuel level readings. In classic vehicles fuel sending units vary greatly by manufacturer in design and resistance range.

These systems were mostly analog and mechanical-electrical hybrids, which makes them both fascinating and tricky to troubleshoot today. Unlike modern digital sensors, older sending units are subject to physical wear, corrosion, and mechanical fatigue, all of which contribute to their eventual failure.

How to Test a Fuel Sending Unit

If your fuel gauge isn’t working or reads inaccurately, the sending unit is a likely culprit. Here's how to test it:

1. Access the Unit: Most sending units are accessible from the top of the  tank. Disconnect the wire from the sending unit.
2. Multimeter Test: Set your multimeter to ohms (resistance mode). Connect one lead to the terminal and the other to the metal body (ground) of the unit.
3. Move the Float Arm: As you manually slowly raise and lower the float, watch the multimeter. A properly functioning sender will show a smooth transition in resistance values without sudden jumps or dead spots.
4. Check Resistance Range: Compare the resistance readings against your vehicle’s expected range (listed below). Mismatched resistance is a sign of incompatibility or damage.
5. Test the Gauge: To isolate the issue, you can also test the fuel gauge independently by grounding the sender wire. If the gauge moves to full, the issue lies with the sender.

Resistance Ranges by Manufacturer

The resistance values varied significantly by brand. Here are known standard ranges:

• General Motors (pre-1965): ~0 ohms (empty) to ~30 ohms (full)
• Ford (1936–1955): ~138–141 ohms (empty) to ~17–19 ohms (full)
• Chrysler/Plymouth (1930s): ~106–140 ohms (empty) to ~3–20 ohms (full)
• AMC/Nash (1940s–1950s): ~73 ohms (empty) to ~10 ohms (full)
• Dodge (WWII military trucks): ~240 ohms (empty) to ~33.5 ohms (full)

Note: Always verify with vehicle-specific documentation or by measuring directly. Be aware you might encounter both original and retrofitted components.

How to Repair a Classic Fuel Sending Unit

While many sending units can be replaced, originals are worth saving if possible. Here's how to approach a repair:

• Float Issues: If the float has fuel inside (indicating a leak), replace it. Floats can often be sourced or rebuilt using cork or brass replacements.
• Corroded Rheostat: Clean the resistor wire with fine sandpaper or contact cleaner. Be gentle—the wire is delicate and essential to accurate readings.
• Bent Arm: If the float arm is misaligned, carefully bend it back to match original specs. Use diagrams or original manuals as a reference to restore factory geometry.
• Broken Contacts: Re-solder or replace any broken electrical connections. Ensure continuity across all wiring, as poor connections can lead to intermittent readings.
• Damaged Gasket or Mounting Flange: Always replace or reseal the gasket to prevent fuel vapor leaks or moisture ingress, which can degrade the unit over time.

After reassembly, repeat the resistance test to confirm smooth operation. Restoration-grade units may also be sent to specialty rebuilders who offer rewinding and recalibration services.

Matching the Fuel Gauge to the Sending Unit

One of the most common problems in classic car restorations is mismatched components. The fuel sending unit must match the resistance range of the fuel gauge. For example, a GM 0-30 ohm sender won’t work correctly with a gauge expecting 240-33 ohms. This mismatch will result in incorrect or erratic readings.

It's also essential to remember that some gauges are powered differently (positive vs. negative ground systems), and pairing them with incompatible senders can lead to burned-out gauges or wildly inaccurate readings. Always check both specs before installation.

The Importance of Proper Wiring

Additionally, the thickness and condition of the wire running from the sending unit to the fuel gauge is critical. A wire that's too thin, damaged, or corroded can increase resistance and cause incorrect readings. Check your wiring schema and wiring information, you should find the wire thickness in the documentation. As a thumb of rule in most classic cars, a wire between 16 and 18 AWG is ideal, and all terminals should be clean and securely fastened.

Grounding is equally important. Poor chassis grounds can mimic the symptoms of a bad sender, especially in older vehicles with rusted or painted frames. Always ensure that both the sending unit and the gauge share a solid ground connection to the vehicle’s chassis.

Why It Matters

You might wonder: why go through the effort? The answer is simple. Classic cars aren’t driven daily, which means fuel can sit for longer, increasing the risk of running dry, vapor lock, or fuel contamination. Knowing your fuel level helps you plan drives, avoid mechanical stress, and protect the long-term health of your engine.

For collectors, especially those restoring rare vehicles, accuracy is also part of authenticity. A working fuel gauge not only adds to the usability of the vehicle but ensures historical fidelity.

Conclusion

Fuel sending units may be small, but they play a critical role in driving safety and convenience. For anyone restoring or maintaining a classic car or truck, a properly functioning fuel sender is as important as any mechanical component. Whether you’re bringing a 1910 Renault back to life or keeping your '40s Ford on the road, take the time to test, match, and if needed, repair your fuel sending unit. A few careful steps now will save you from guessing later when the gauge says "empty" and you’re not sure if it's telling the truth.

In the world of vintage motoring, accuracy is more than convenience—it's preservation. Take pride in the small details, and your classic car will reward you with both reliability and historical integrity.
